Powder extinguishers cartridge operated CS-series

Composite valve

The push button valve of the DÖKA CS series are made of fiberglass-reinforced composite materials. Metal inlets strengthen the fitting. The union nut is made of brass. The pressure resistance of the valve body far exceeds the values ​​required by the standard.

The control elements of the CS series, such as the strike button, safety device and handle, are designed in such a way that the fire extinguisher can also be operated with gloves without any problems. The rotating extinguishing pistol rounds off the perfect handling.

The DÖKA cartridge operated powder fire extinguishers of the CS-series with internal propellant cartridge. The fire extinguisher is only put under operating pressure after pulling the securing and depressing the push button when it is in use. This ensures a high level of operational reliability, saves material and minimizes maintenance costs.

ABC dry powder

DÖKA fire extinguishers with ABC extinguishing powder (ember fire powder) are versatile and superior to other extinguishing agents in their extinguishing effect on standard objects. The extinguishing effect takes place suddenly. Special barrier effects prevent re-ignition in solid fires, e.g. B. wood. The extinguishing powder cloud unfolds over a large area and protects against smoke and radiant heat.
The extinguishing powder used in DÖKA powder fire extinguishers impresses with an excellent extinguishing effect on fires of fire classes ABC.
ABC extinguishing powder is electrically non-conductive, so it can also be used in electrical systems in accordance with VDE 0132. It is environmentally friendly and can be recycled into fertilizer after its useful life.

Features

Fire class A, combustible solid materials
such as wood, car tires, textiles

Fire class B, flammable liquids
such as alcohols, petrol, paint, oil

Fire class C, flammable gases
industrial and natural gases

Electrical systems
Up to 1.000 V, minimum distance 1 meter

Areas of application
garages, tire stores, heating systems, chemical industry, refinerie.

Technical data

Gi6CS-03

Capacity: 6 kg ABC-dry powder
Rating: 43A / 233B / C
Dimensions H x W x D ca. mm: 565 x 240 x 160
Weight ca. kg: 10,2
Throw range ca. m: 7
Discharge time ca. Sek.: 22
Operating temp. °C: -30 to +60

Highlights

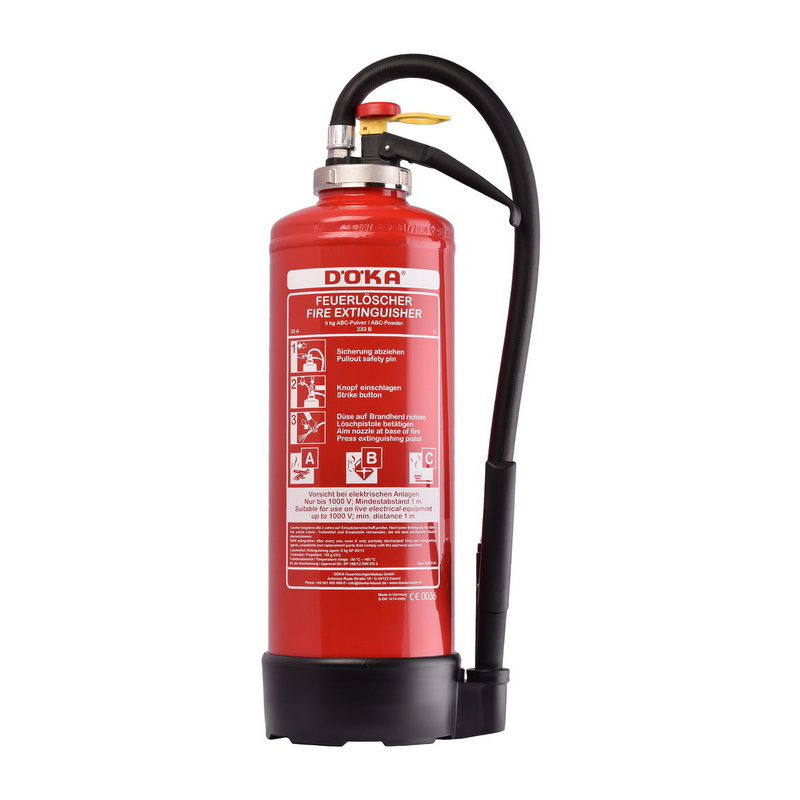

DÖKA powder fire extinguisher Gi6CS-04
  • High extinguishing performance
  • Cylinder with polyester resin coating
  • Turnable pistol
  • Foot ring with hose adapter to protect the bottom of the cylinder
  • Bilingual operating screen German / English


Quality features

Push button valve

Base body made of fiberglass-reinforced composite material, reinforced with additional metal inlets.
