Permanent pressure WN-Series

Aqueous solution

The extinguishing effect is based on the heat binding capacity (heat capacity) of the water. The seat of the fire is cooled down considerably and the combustion is stopped. The extinguishing agent consists of water with and the addition of highly effective additives. As a result, our water fire extinguishers achieve excellent ratings in fire class A. The extinguishing agent is completely free of PFOS and PFOA.

Full metal valve with manometer

Economy line

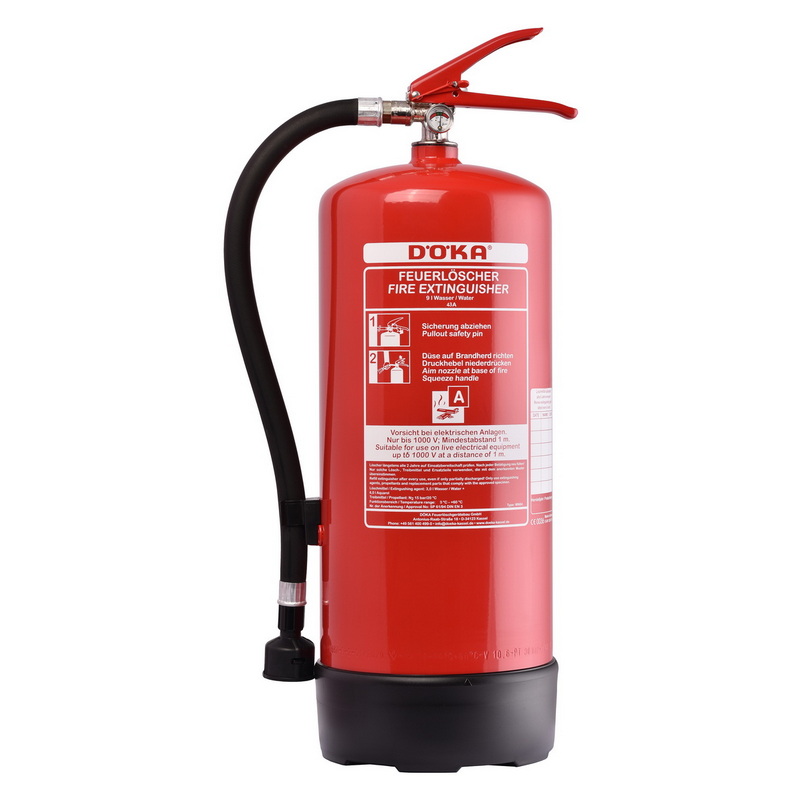

The DÖKA permanent pressure water fire extinguishers are equipped with an extinguishing agent container made of quality sheet steel. The high-quality polyester resin coating is tough and weatherproof and protects the extinguishing agent container from corrosion. The metal fitting with pressed brass body is equipped with a pressure gauge and a separate test valve as standard.

Features

Fire class A

combustible solid materials such as wood, car tires, textiles

Electrical systems

Up to 1.000 V, minimum distance 1 meter

DIN EN 3

Type-tested according to DIN EN 3

Made in Germany

Developed and manufactured in Germany

Fluorine free

Extinguishing agent complies with the latest environmental standards

Technical Data

Capacity: 9 kg ltr. foam
Rating: 34A / 183B
Dimensions H x W x D ca. mm: 575 x 270 x 195
Weight ca. kg: 14,8
Throw range ca. m: 4-6
Discharge time ca. Sek.: 34
Operating temp. °C: -25 to +60
