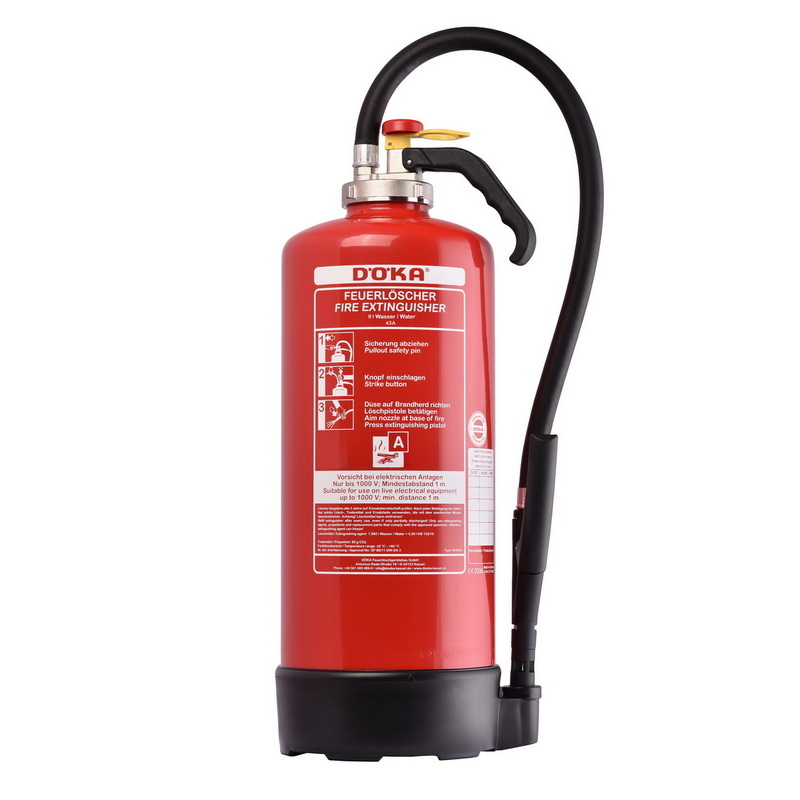

Cartridge operated BS-Series

No compromises on fire safety. DÖKA BS-series rechargeable fire extinguishers combine durability with intuitive handling.

Featuring a brass fitting and safety valve, they meet the highest standards of quality and safety.

The BS series has an internal propellant cartridge and a push-button activation. The fire extinguisher is only pressurized in the event of an emergency by pulling the safety pin and pressing the push button. This ensures high operational reliability, protects the material, and guarantees a long service life. The generous dimensions of all operating components, such as the carrying handle, safety pin, push button, and discharge nozzle allow for easy and comfortable handling. All models in the BS series feature an ergonomically shaped carrying handle with finger grooves for superior comfort. The rotating discharge nozzle allows for optimal control of the extinguishing agent stream and one-handed operation.

  • Robust: High-quality nickel-plated brass fitting with integrated pressure relief valve

  • Ergonomic: Secure grip thanks to the non-slip handle and 360° rotating nozzle for complete control.

  • Fast & Safe: The fire extinguisher is only pressurized when needed.

Aqueous solution

The extinguishing effect is based on the heat binding capacity (heat capacity) of the water. The seat of the fire is cooled down considerably and the combustion is stopped. The extinguishing agent consists of water with and the addition of highly effective additives. As a result, our water fire extinguishers achieve excellent ratings in fire class A. The extinguishing agent is completely free of PFOS and PFOA.

Features

Fire class A

combustible solid materials such as wood, car tires, textiles

Electrical systems

Up to 1.000 V, minimum distance 1 meter

DIN EN 3

Type-tested according to DIN EN 3

PREMIUM LINE

For the highest standards of quality and safety

Made in Germany

Developed and manufactured in Germany

Fluorine free

Extinguishing agent complies with the latest environmental standards

Technical Data

Capacity: 6 ltr. Aqueous solution
Rating: 34A
Dimensions H x W x D ca. mm: 560 x 235 x 170
Weight ca. kg: 10,4
Throw range ca. m: 9-11
Discharge time ca. Sek.: 41
Operating temp. °C: 0 to +60

Question about this product

Downloads

Data sheet

PDF

Brochure portable fire extinguishers

PDF

CE Declaration of conformity and operating instructions

PDF
