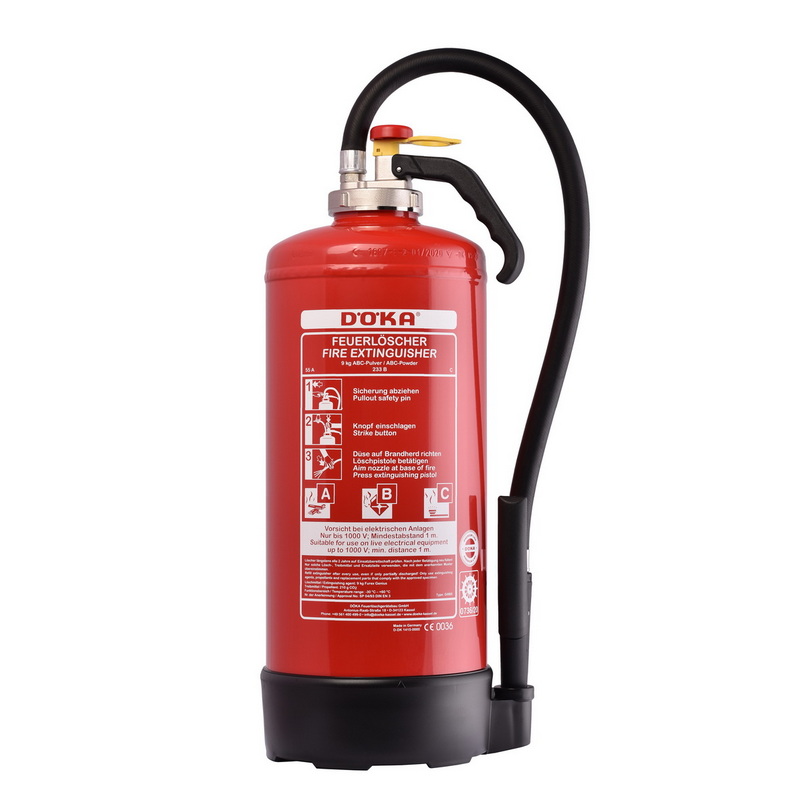

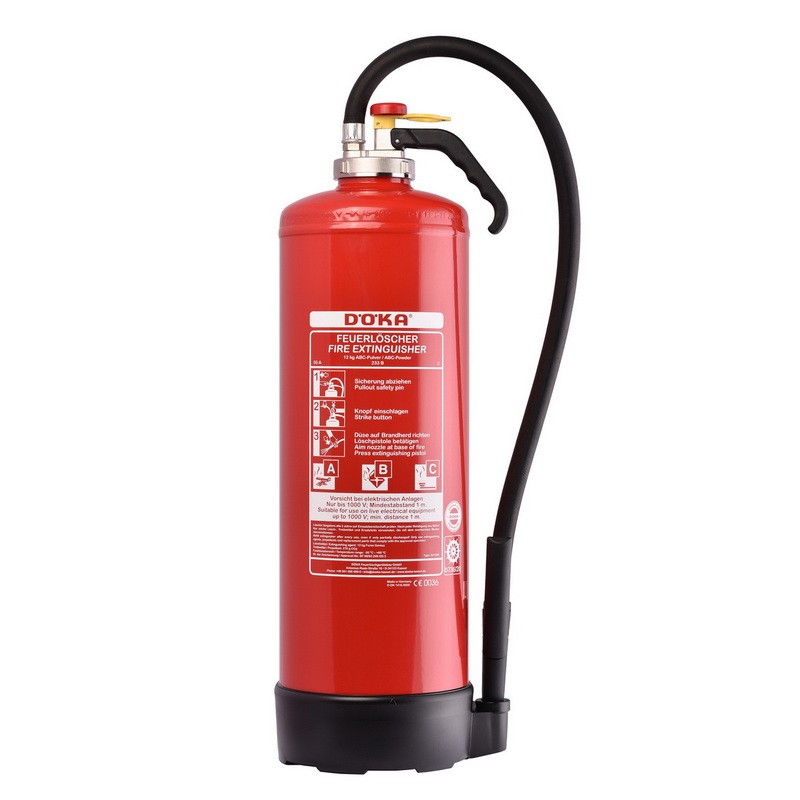

Cartridge operated BS-Series

No compromises on fire safety. DÖKA BS-series rechargeable fire extinguishers combine durability with intuitive handling.

Featuring a brass fitting and safety valve, they meet the highest standards of quality and safety.

The BS series has an internal propellant cartridge and a push-button activation. The fire extinguisher is only pressurized in the event of an emergency by pulling the safety pin and pressing the push button. This ensures high operational reliability, protects the material, and guarantees a long service life. The generous dimensions of all operating components, such as the carrying handle, safety pin, push button, and discharge nozzle allow for easy and comfortable handling. All models in the BS series feature an ergonomically shaped carrying handle with finger grooves for superior comfort. The rotating discharge nozzle allows for optimal control of the extinguishing agent stream and one-handed operation.

  • Robust: High-quality nickel-plated brass fitting with integrated pressure relief valve

  • Ergonomic: Secure grip thanks to the non-slip handle and 360° rotating nozzle for complete control.

  • Fast & Safe: The fire extinguisher is only pressurized when needed.

Extinguishing agent: ABC extinguishing powder

When seconds count, ABC extinguishing powder offers a decisive advantage. It combines immediate extinguishing action with maximum safety for users. The extinguishing powder cloud spreads over a large area and protects against smoke and radiant heat.

  • High extinguishing power: ABC extinguishing powder is more effective than other extinguishing agents on standard objects

  • Reliable protection against re-ignition: The barrier layer effect effectively prevents the supply of oxygen

  • Versatile & safe: Ideal for fire classes A, B, and C as well as for electrical systems (in accordance with VDE 0132)
  • Sustainable: ABC extinguishing powder is environmentally friendly and can be recycled into fertilizer after use

Features

Fire class A

combustible solid materials such as wood, car tires, textiles

Fire class B

flammable liquids such as alcohols, petrol, paint, oil

Fire class C

flammable gases industrial and natural gases

Electrical systems

Up to 1.000 V, minimum distance 1 meter

Frost resistant

Up to -30 °C

MED Approval

Approved for maritime usage in accordance with MED 2014/90/EU

DIN EN 3

Type-tested according to DIN EN 3

PREMIUM LINE

For the highest standards of quality and safety

Made in Germany

Developed and manufactured in Germany

Technical Data

Capacity: 6 kg ABC-dry powder
Rating: 43A / 233B / C
Dimensions H x W x D ca. mm: 565 x 240 x 160
Weight ca. kg: 10,4
Throw range ca. m: 7
Discharge time ca. Sek.: 22
Operating temp. °C: -30 to +60
MED 2014/90/EU: Yes
